🔄 How to Source Replacement Parts for Older Concrete Batching Plants

✅ Older Batching Plants Often Need Careful Part Matching

Many concrete batching plants work for years in construction sites, ready-mix concrete plants, road projects, and infrastructure projects. Over time, some original parts may wear out, labels may disappear, and the original supplier may no longer be available.

For older concrete batching plants, sourcing replacement parts is not always simple. The plant may still work well, but some parts such as screw conveyor bearings, gear reducers, butterfly valves, motors, load cells, silo filters, and pneumatic parts may need replacement.

In this situation, customers should not choose spare parts only by appearance. The size, connection method, shaft structure, voltage, power, installation direction, and working position should be checked carefully.

🔍 Common Problems When Replacing Parts on Old Plants

Customers often meet these problems:

✅ The old part has no clear nameplate
✅ The model number is damaged or missing
✅ The original brand is no longer available
✅ The plant has been modified before
✅ Local workers cannot confirm the exact part name
✅ The part looks similar but the size is different
✅ Flange holes or shaft size do not match
✅ Electrical voltage or control type is different

These problems are common, especially for batching plants that have been used for many years.

🧩 Which Parts Are Commonly Replaced?

Older batching plants often need replacement parts from several systems.

These parts may be small, but they can affect the whole batching plant operation.

📷 Photos Are Very Useful for Old Equipment

For old batching plants, photos are often the fastest way to start model confirmation.

Customers can send:

✅ Full photo of the plant section
✅ Close-up photo of the old part
✅ Photo of the damaged area
✅ Nameplate photo if available
✅ Flange and mounting hole photo
✅ Shaft or connection photo
✅ Photo showing where the part is installed

If the old model number is missing, suppliers can still compare the structure and request key dimensions.

📌 Key Dimensions Buyers Should Confirm

Different spare parts need different dimensions.

For example:

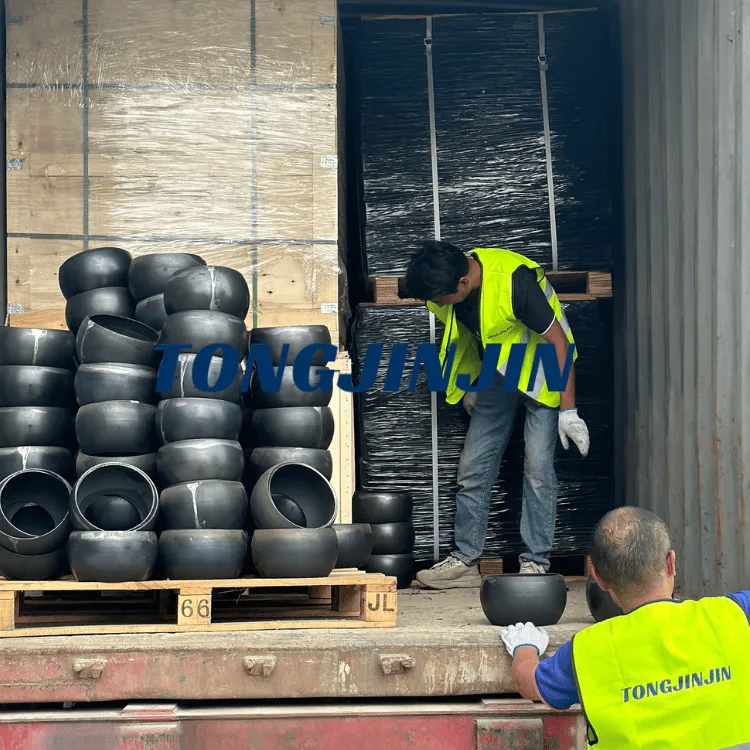

✅ Screw Conveyor Parts
Conveyor diameter, shaft diameter, bearing type, screw flight pitch, inlet and outlet position.

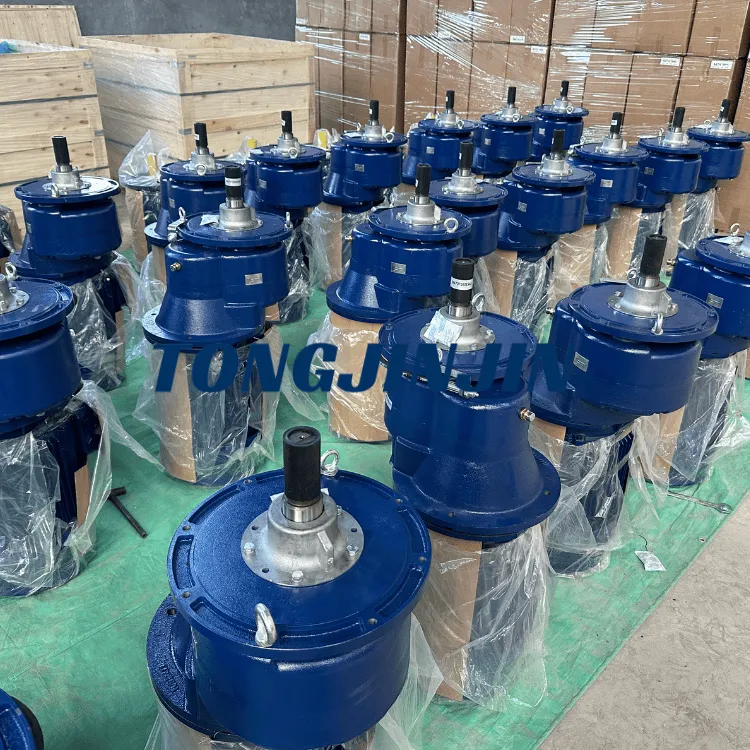

✅ Gear Reducer
Gear ratio, output shaft size, flange size, motor connection, mounting direction.

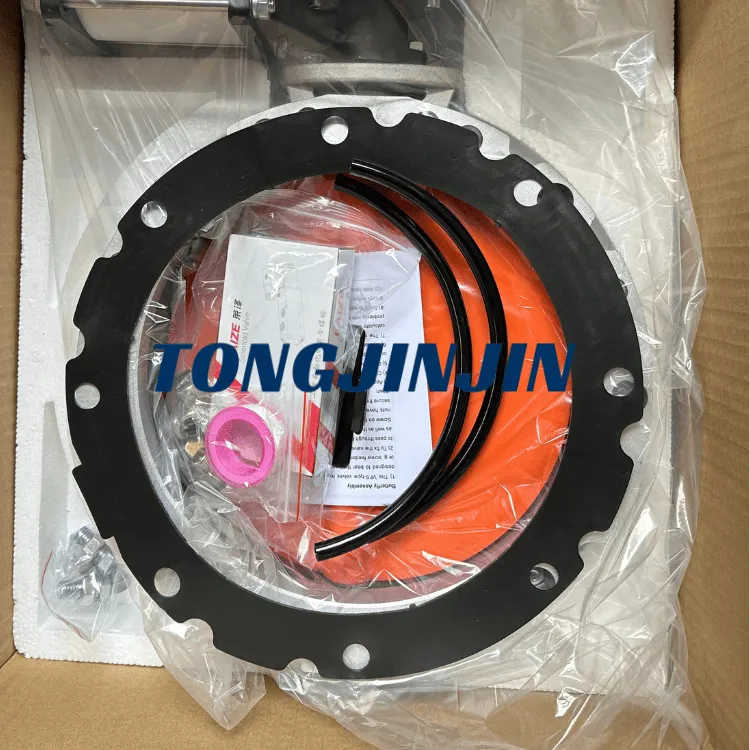

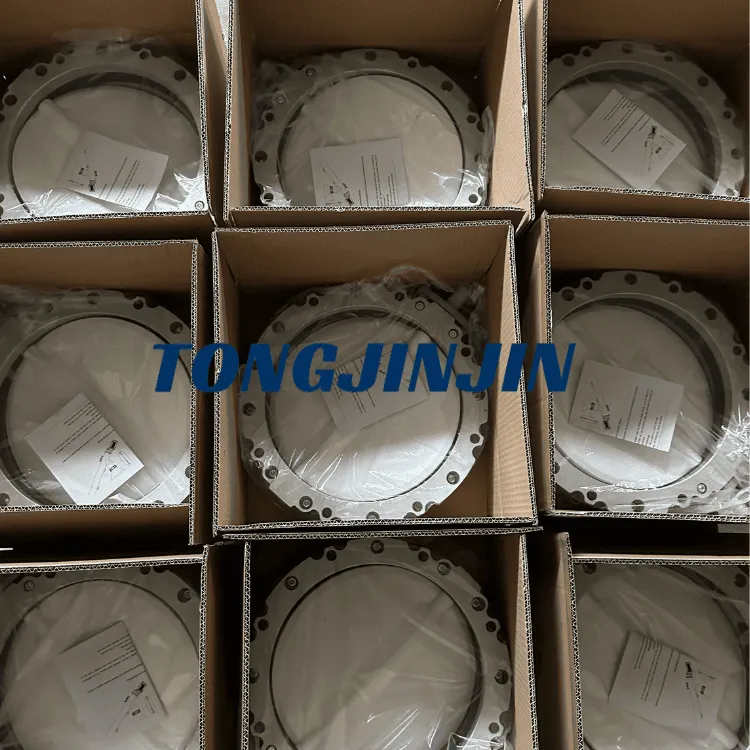

✅ Butterfly Valve
Valve diameter, flange type, manual or pneumatic control, actuator interface.

✅ Solenoid Valve
Voltage, port size, thread type, valve type, electrical entry.

✅ Load Cell
Capacity, structure type, mounting hole distance, cable direction.

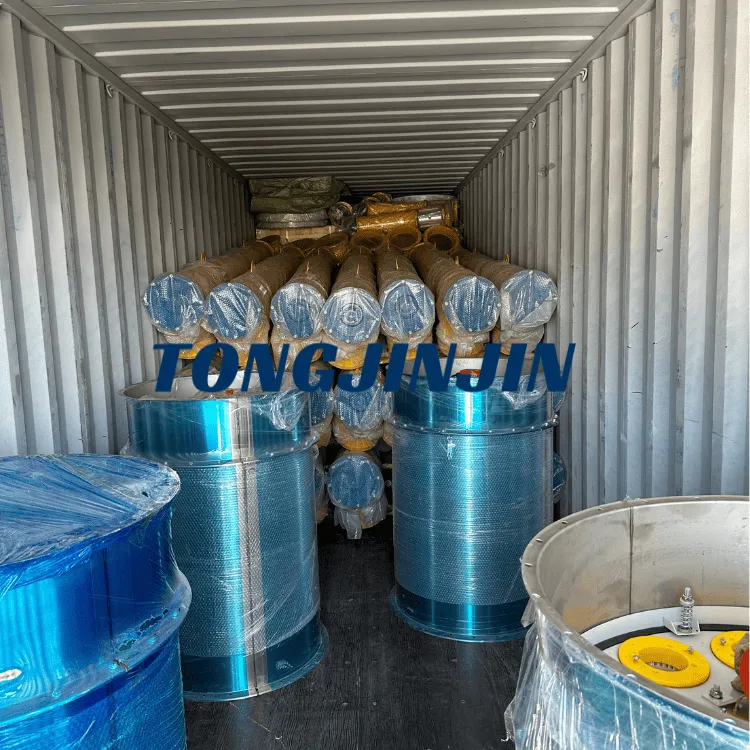

✅ Silo Filter
Body size, installation flange, filter element type, cleaning method.

Checking these details before ordering can reduce installation problems.

⚙️ Why Old Plants Should Not Be Repaired Randomly

When one old part fails, it may be connected with other worn parts.

For example:

✅ A worn hanger bearing may cause shaft shaking
✅ Shaft shaking may damage the screw flight
✅ A blocked screw conveyor may overload the reducer
✅ A slow butterfly valve may be caused by the solenoid valve
✅ Inaccurate weighing may be related to load cell installation
✅ Dust leakage may be caused by filter blockage or damaged seals

Replacing only the visible damaged part may not solve the real problem. The related system should also be checked.

🛠️ Practical Advice for Buyers

Before buying replacement parts for older batching plants, customers should prepare:

✅ Old part photos
✅ Installation position
✅ Main dimensions
✅ Working material
✅ Quantity required
✅ Voltage or power information
✅ Problem description
✅ Whether the part needs urgent replacement
✅ Whether related spare parts are needed together

This makes the inquiry more complete and helps suppliers respond faster.

🏭 TONGJINJIN Support

TONGJINJIN provides replacement parts for concrete batching plants, cement silo systems, screw conveyor systems, pneumatic control systems, and powder conveying equipment.

Our products include screw conveyors, screw flights, hanger bearings, end bearings, shaft couplings, gear reducers, motors, butterfly valves, pneumatic actuators, solenoid valves, load cells, silo venting filters, pressure relief valves, level indicators, pneumatic hammers, universal joints, mixer parts, and related accessories.

For older batching plants, customers can send photos, drawings, sizes, and working condition details for model checking.
